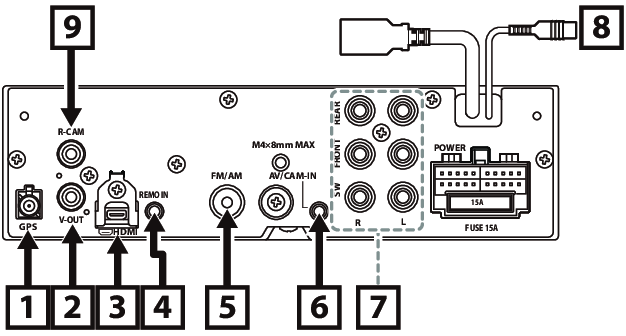

Connecting the system and external components

①

Accessory ⑤ : GPS Antenna

Use the supplied GPS antenna. Using the GPS antenna other than the supplied one may cause a drop in positioning accuracy.

②

Visual Output (Yellow)

• Images can be output only from the USB (video file) source.

③

HDMI input (Type-D)

Connect a KCA-HD200 (optional accessory) to HDMI input terminal.

④

Accessory ⑦ : Steering remote harness Connect to vehicle’s steering remote harness.

Contact your KENWOOD dealer for details.

⑤

FM/AM antenna input

⑥

This jack accepts either AV-IN or front view camera input. For more information, see Input Setup.

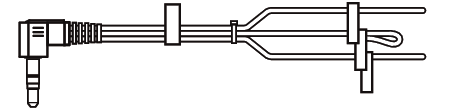

3.5 mm 4 pole mini plug (1; Left audio, 2; Video, 3; Ground, 4; Right audio)

⑦

When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit.

⑧

Accessory ② : Microphone

⑨

Rear view camera input (Yellow)
