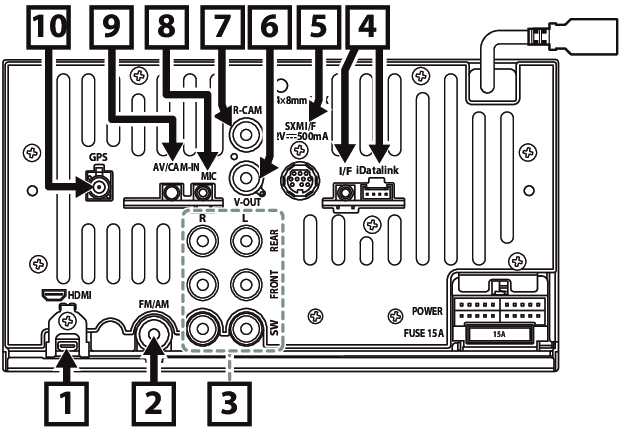

Connecting the system and external components

①

HDMI input (Type-D)

Connect a KCA-HD200 (optional accessory) to HDMI input terminal.

②

FM/AM antenna input

③

When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit.

④

iDatalink Maestro connector

⑤

SiriusXM Connect Vehicle Tuner connector

For more information on how to install the SiriusXM Connect Vehicle tuner, consult the installation guide included with the tuner.

⑥

Visual Output (Yellow)

• Images can be output only from the USB (video file) source.

⑦

Rear view camera input (Yellow)

⑧

Accessory ② : Microphone

⑨

This jack accepts either AV-IN or front view camera input. For more information, see Input Setup.

3.5 mm 4 pole mini plug (1; Left audio, 2; Video, 3; Ground, 4; Right audio)

⑩

Accessory ⑤ : GPS Antenna

Use the supplied GPS antenna. Using the GPS antenna other than the supplied one may cause a drop in positioning accuracy.
