Microphone unit

  1. Check the installation position of the microphone (accessory ②).
  2. Clean the installation surface.
  3. Remove the separator of the microphone (accessory ②), and stick the microphone to the place shown below.
  4. Wire the microphone cable up to the unit with it secured at several positions using tape or other desired method.
  5. Adjust the direction of the microphone (accessory ②) to the driver.

NOTE

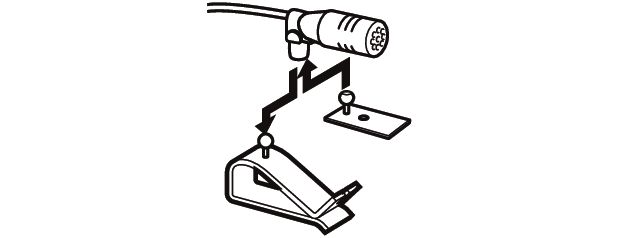

  1. Replace the plate and clips as needed.
