Confirm the installing position of the display unit

Vehicles cannot be installed

It may be possible to install if it can avoid the following by adjustment for display height.

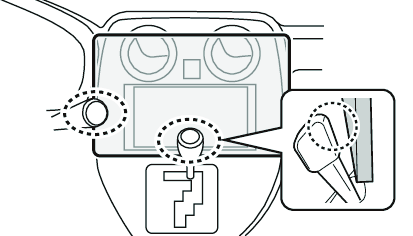

• Lever operations are interfered such as shift lever, wiper lever, winker lever when install the unit.
•

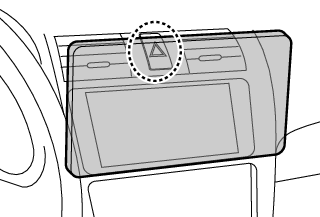

• A hazard switch is hidden from a driver seat.
•

The adjusting position and mounting dimension of the display unit

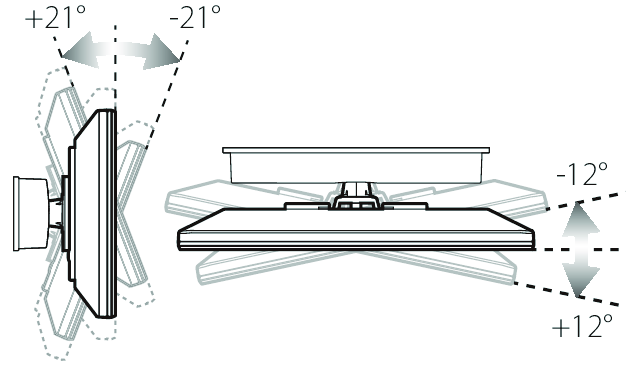

• Vertical tilt: ±21°, horizontal tilt: ±12°
•
• Height adjustment: ±15 mm from center (45 mm)

CAUTION

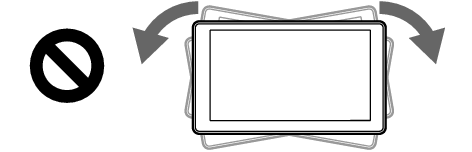

• Do not rotate the unit side to side. Doing so could damage the unit.
•
